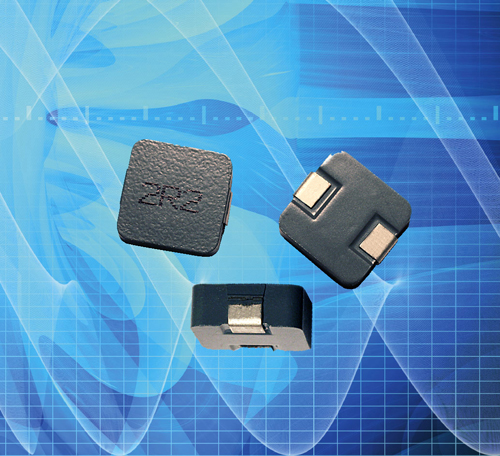

AVX Corp. LMIP Series Inductors

Featuring a homogeneous pressed iron powder core construction, LMIP Series inductors exhibit low loss and reduced inductance drop due to applied current, enabling higher saturation current ratings in smaller, lower profile packages. Available in six miniature case sizes, the new LMIP Series inductors are ideal for applications including: LED lighting, portable electronics, power inverters, power supplies, reverse battery protection, and DC/DC, AC/DC, and point of load (POL) converters.

Magnetically shielded, lead-free compatible, and RoHS compliant, the new LMIP Series SMD power inductors feature tin (Sn) plated terminations and reliable, low loss SMT construction. Available in six case sizes (2016, 4040, 5050, 7070, 1010, and 1313), two tolerances (±20% or ±30%), and with thicknesses ranging from 1.0mm to 6mm, the series is rated for 0.1µH to 8.2µH inductance, up to 3.0MHz frequency, and up to 60A saturation current. Operating temperatures for the series range from -40 degrees Celsius to +125 degrees Celsius.

AVX Corp., 864-967-2150

www.avx.com

.
