Stealth Metal Detector and Dual-Lane Checkweigher Custom Engineered

Unit works in unison with a dual-head vertical form fill seal bagging machine

1 Min Read

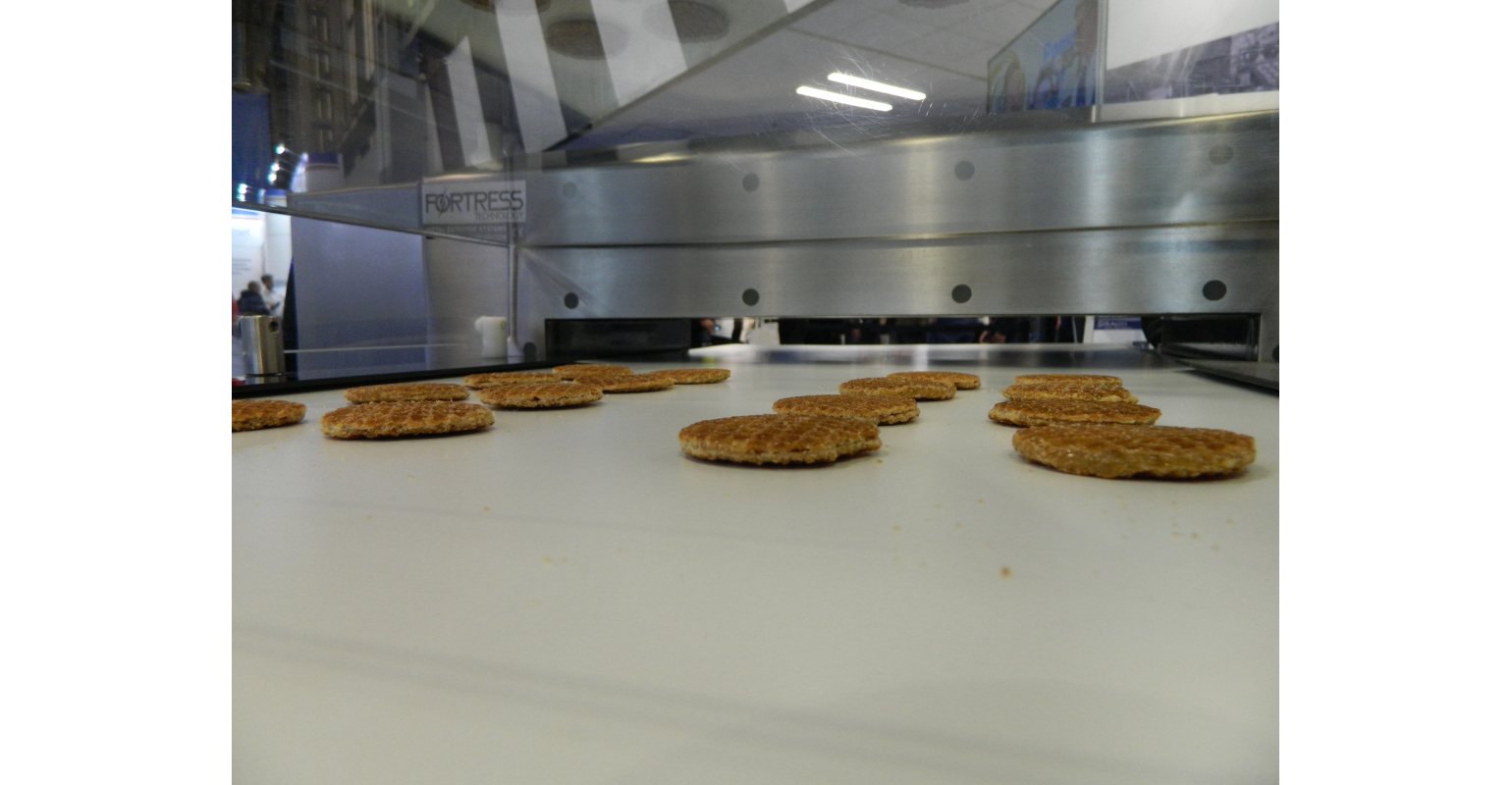

Image courtesy of Fortress Technology Inc.

Fortress Technology has custom-engineered a unique twin aperture stealth metal detector and dual-lane Raptor 200 checkweigher that delivers high efficiency.

The custom-designed dual lane Raptor 200 checkweigher is fed by a dual-lane stealth metal detector to provide complete quality control, with the ability to work in unison with a dual-head vertical form fill seal (VFFS) bagging machine and match output speeds of 120-140 ppm. The compatible system utilizes a modular plastic chain radius conveyor belt to provide optimal lane spacing for the dual-aperture detector and meet end user requirements.

Dual Lane Conveyer and Independent Programming

The dual-lane version of the multi-aperture metal detector comprises a single unit split into two smaller dedicated apertures for each lane that acts as independent metal detectors. Both simultaneously inspecting products, the lanes remain programmed to run independently to help to minimize interruption and provide extra inspection and weight verification capacity.

Air-Blasting Abilities

Using air-blast nozzles between the two outfeed conveyors, the Raptor checkweigher can independently remove contaminated products into lockable, stainless steel reject bins. The air-blast devices provide quality control by detecting both metal and weight rejects in each lane, whereby contaminants are blasted outwards to their retrospective bins, equipped with sensors.

Collates Critical Data

The Raptor’s load cells can weigh, analyze, capture, and report data simultaneously to ensure absolute traceability and compliance with retailer codes of practice and QA protocols. Both the metal detector and Raptor checkweigher capture easy-to-read live OEE data and benefit from integrated contact reporter software.

Fortress Technology Inc., Toronto, ON, Canada 416-754-2898
