Compact modules

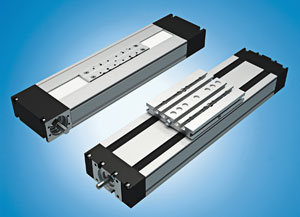

CKK and CKR compact modules


Compact modules

CKK and CKR compact modules are now available in size 9-70 to simplify the handling of lighter loads in pick-and-place, assembly and other automated applications. Users can choose between ball-screw (CKK) and toothed-belt (CKR) versions with identical connection dimensions, common accessories and mounting components. The ready-to-install linear modules ship in customer-specified lengths cut to the millimeter: Up to 600 mm for the ball-screw version and 1,500 mm for the toothed-belt model. Each compact module consists of a rigid, 70x32-mm aluminum housing, including the carriage plate. Two ball-rail systems feature smooth, precision guidance-even at fast travel speeds, says the co.

Bosch Rexroth, 847/645-3728.
